9 storey Hotel of 5 star category Luxury hotel chain

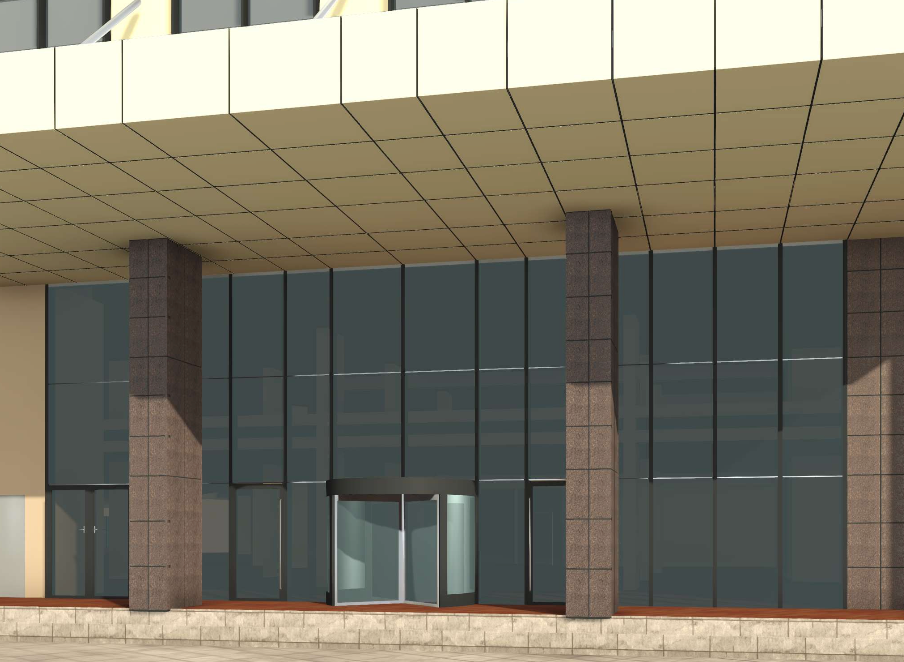

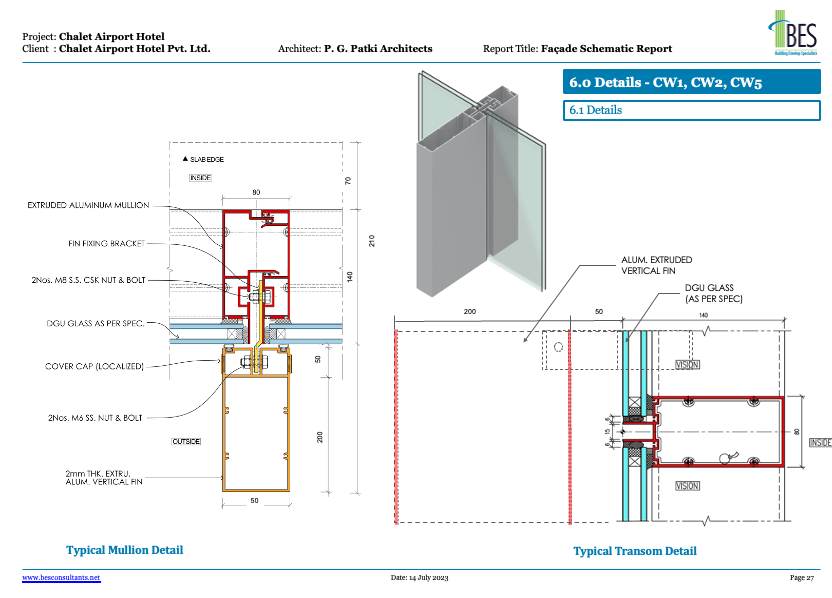

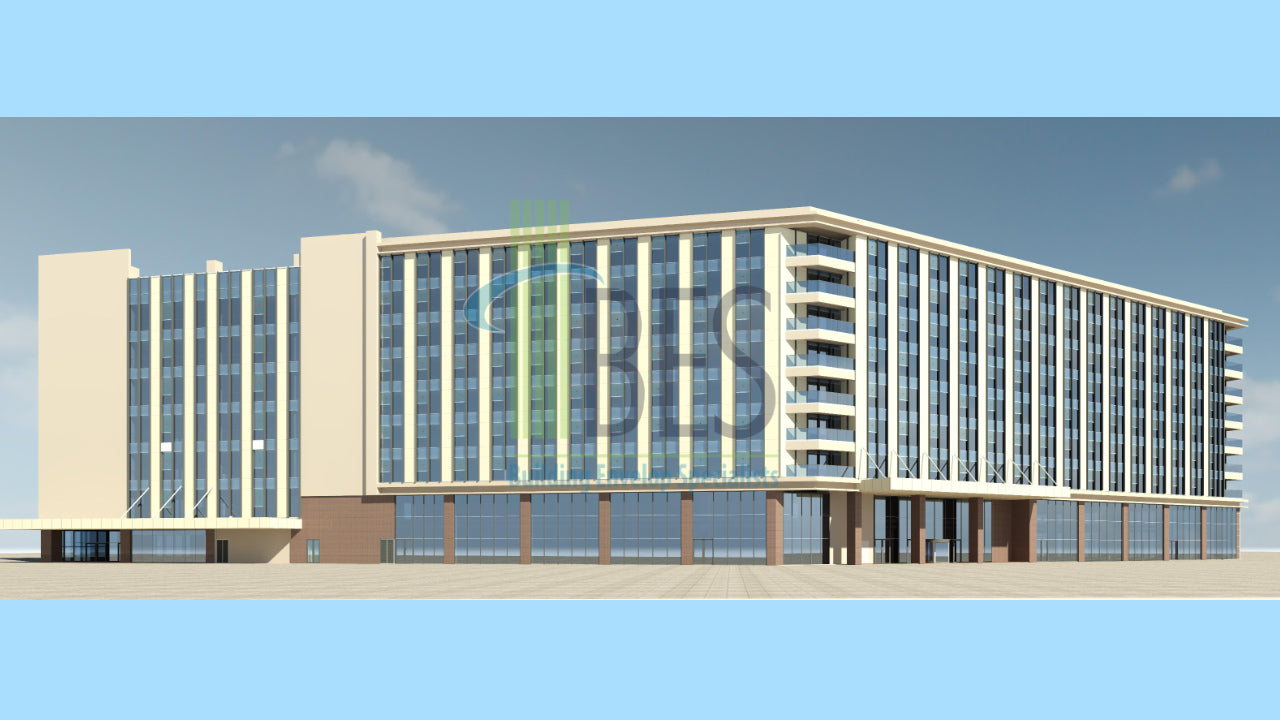

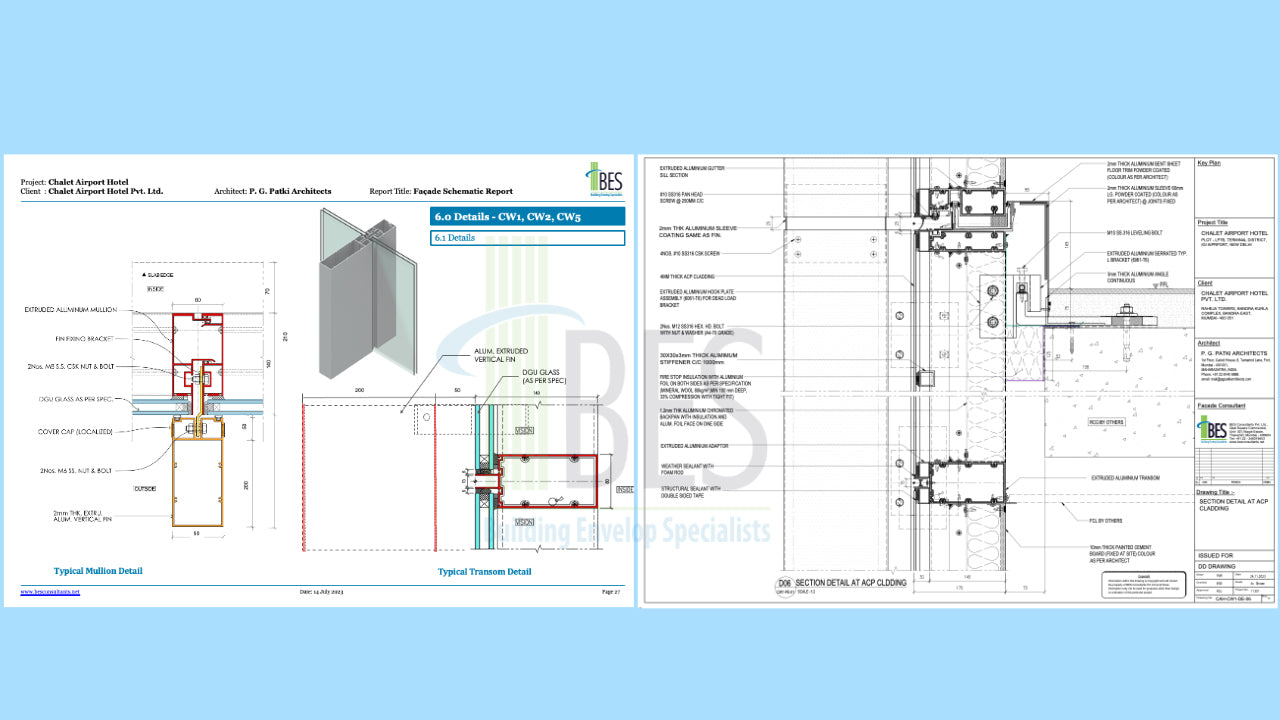

The proposed façade design intent showing full floor height glazing with Vertical Fins. The typical glazing has been proposed with DGU Glass to improve the energy efficiency and enhance glazing thermal performance. BES has been appointed by the developer for scope covering concept to site completion of facade engineering design and BIM services.

BES optimised fins and glazing engineers modulations balanced with visual and standardised glass modules resulted highly cost efficient designs. With expertise covering concept design, detailed engineering, and site execution, BES ensures world-class quality and efficiency for high-end hospitality projects.

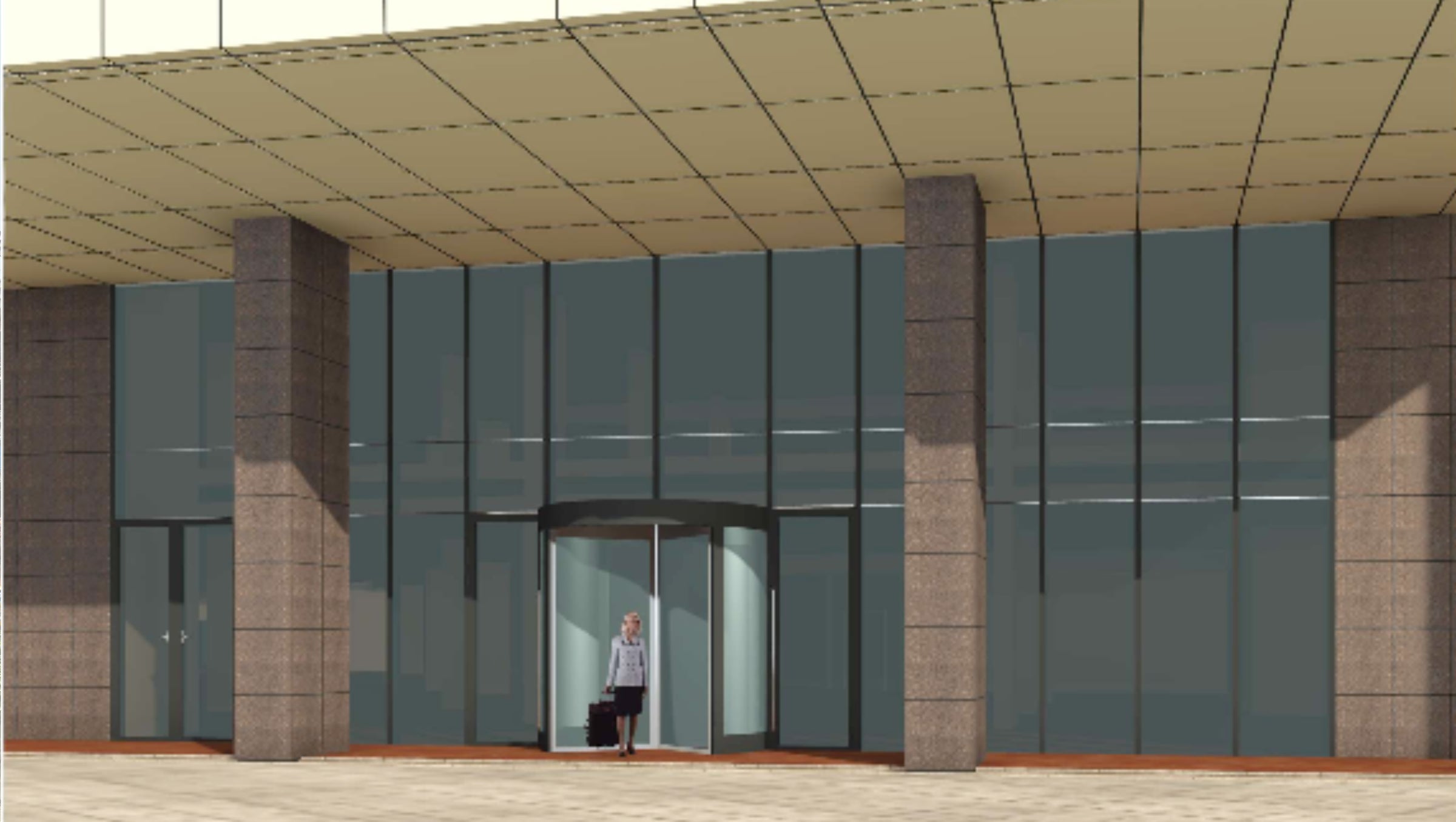

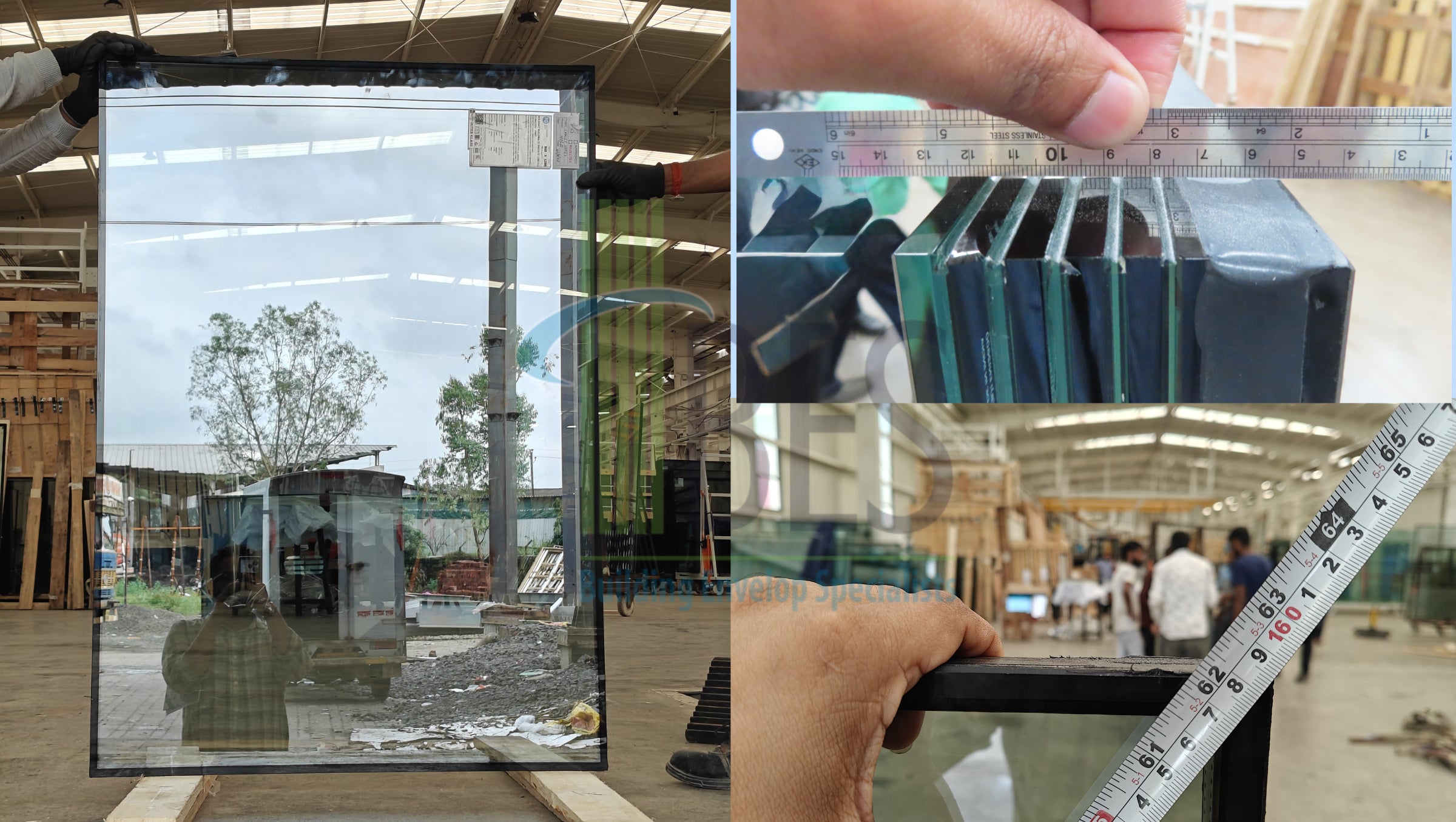

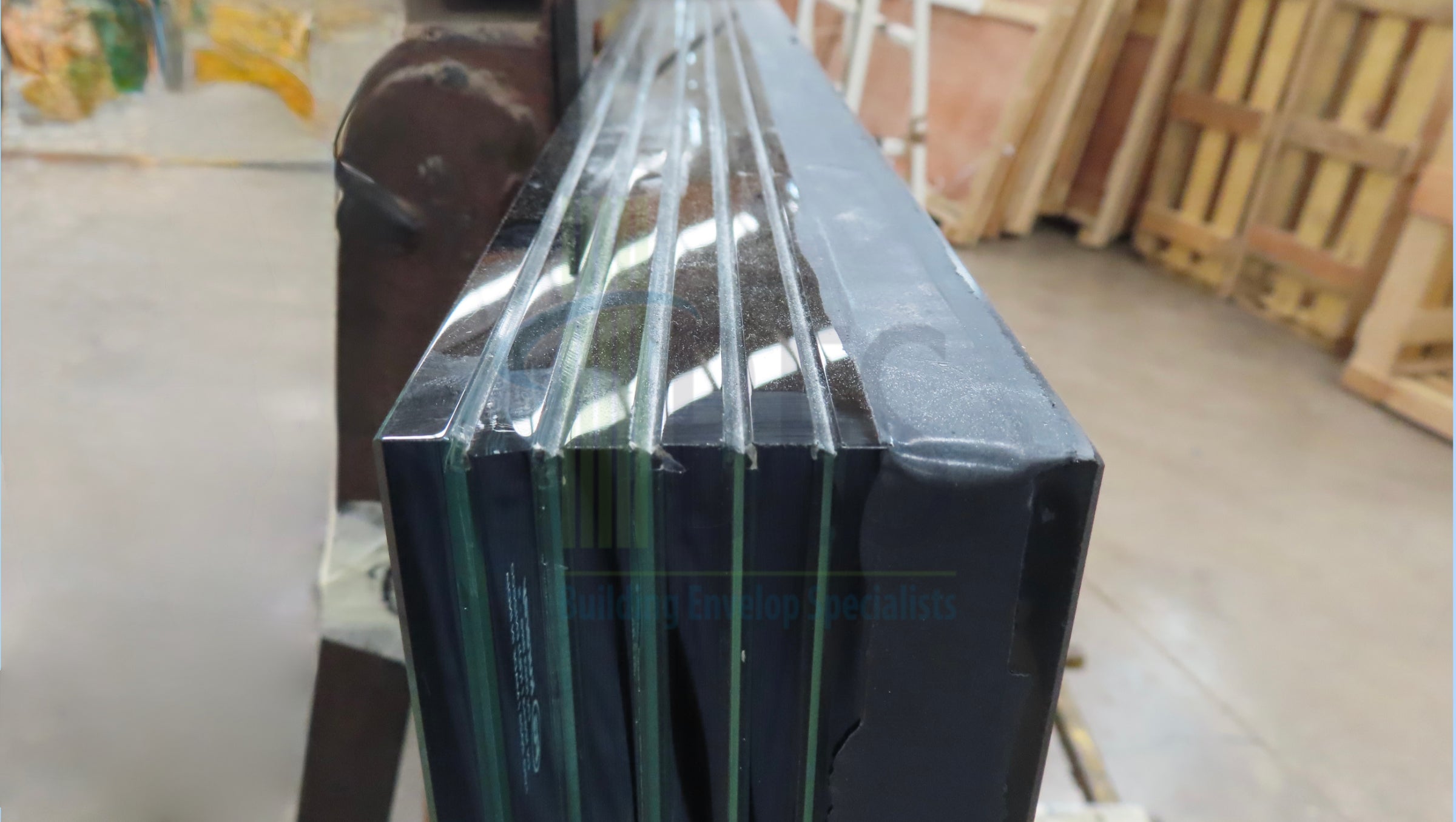

The hotel facades facing active airport runway (T3 terminal, Delhi airport), featured with bullet proof glazing. BES team deeply involved with this complex specialist glazing involves heavy stuctural systems.

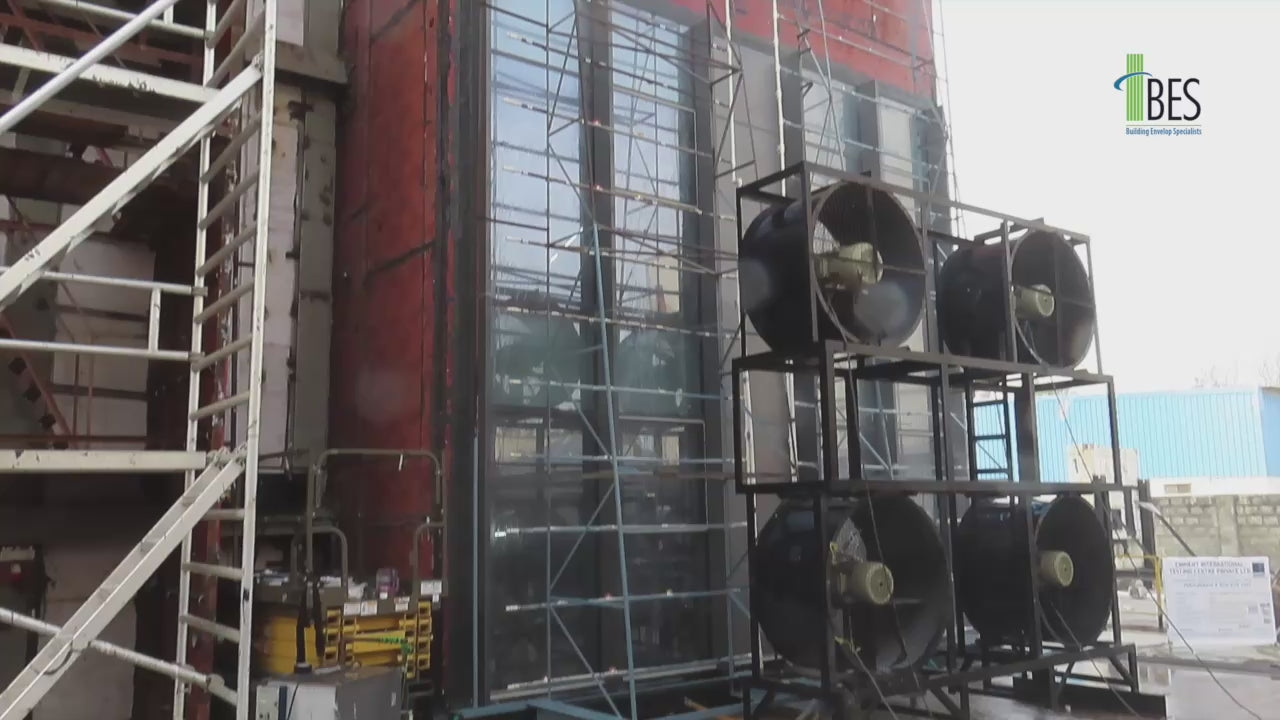

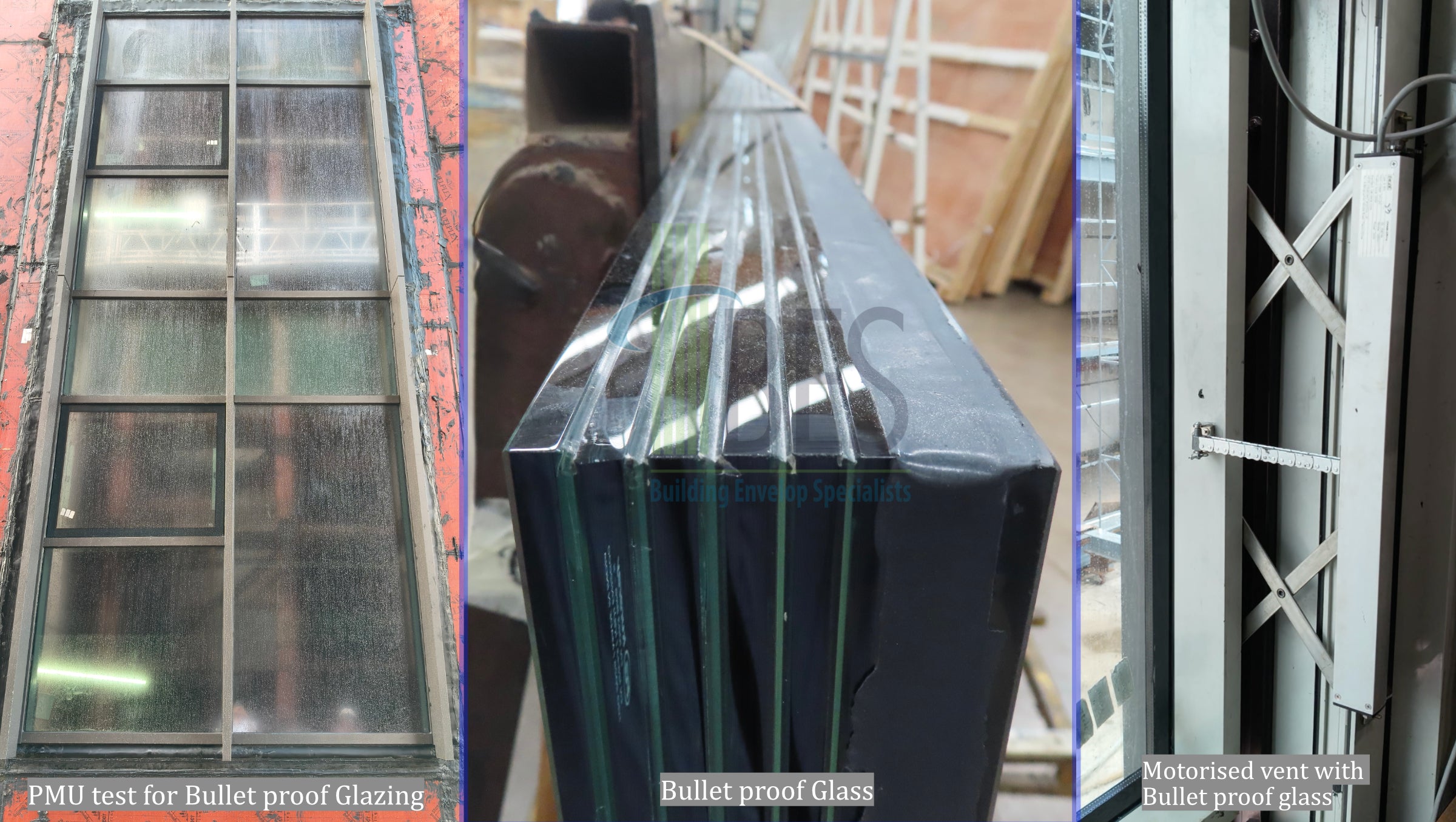

Bullet proof glazing with motorised smoke vent using heavy glass unit, the entire system with vent has been tested for performance at the external third party test lab. BES team involved in details for the successful integration of the challenging bullet proof glazing system

Client : CHALET AIRPORT HOTEL PVT LTD

Architect : P.G. Patki Architects

Project Status : Construction Stage

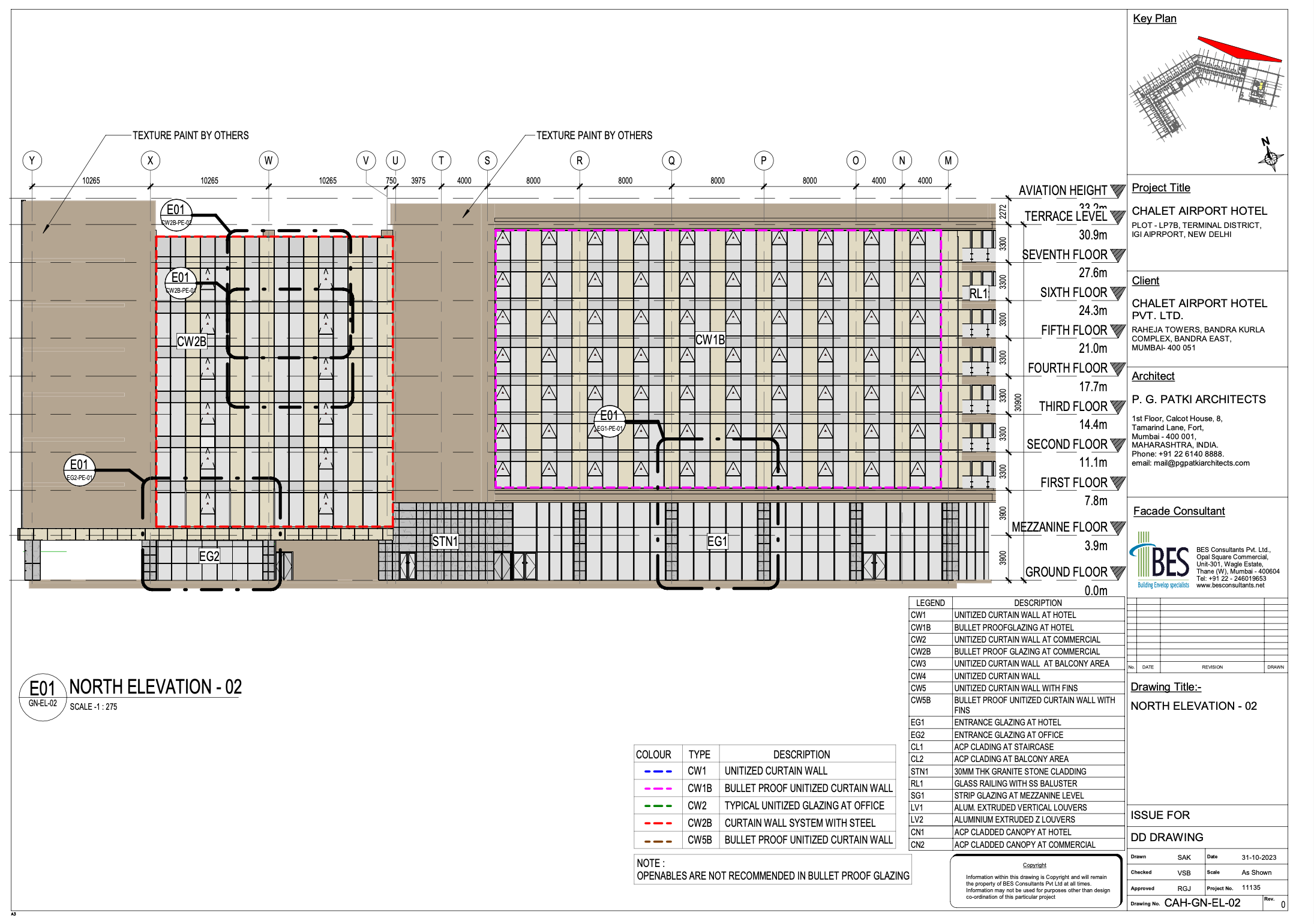

Scope : Building Envelope designs including design of Bullet Proof Glazing System

What We Did

Facade Design & Engg, BIM

BES Value Add:

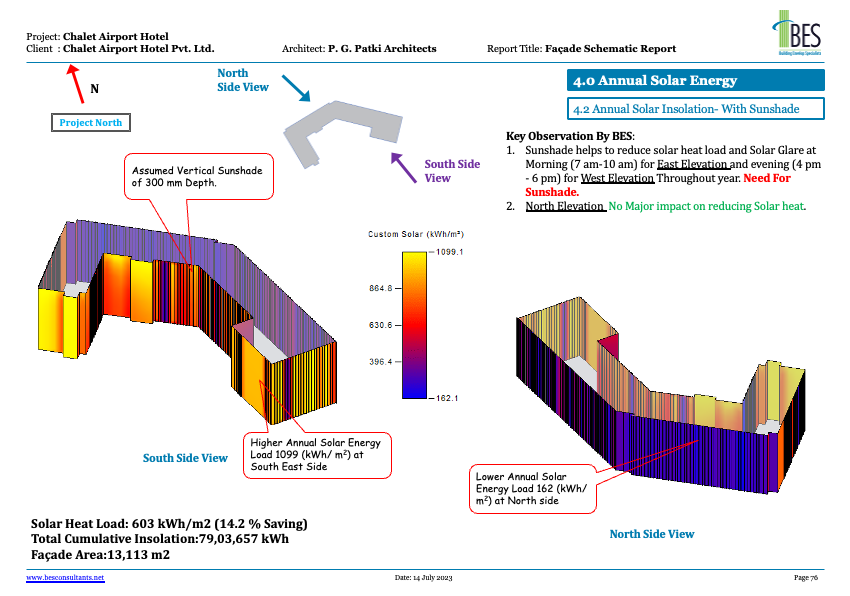

• Bespoke facade system integrated with fins acting as shading elements.
• Able to quickly generate various façade concepts with fins, helps client and architect to visualize and finalise.
• Facades are Incorporated with security requirements for hotel facades facing airport operational runway.
• Detailing of Bullet proof glazing, interfacing with facades facing airside (Terminal T3)
• Resolve complex details involves bullet proof glazing intefaces with typical unitized CW
